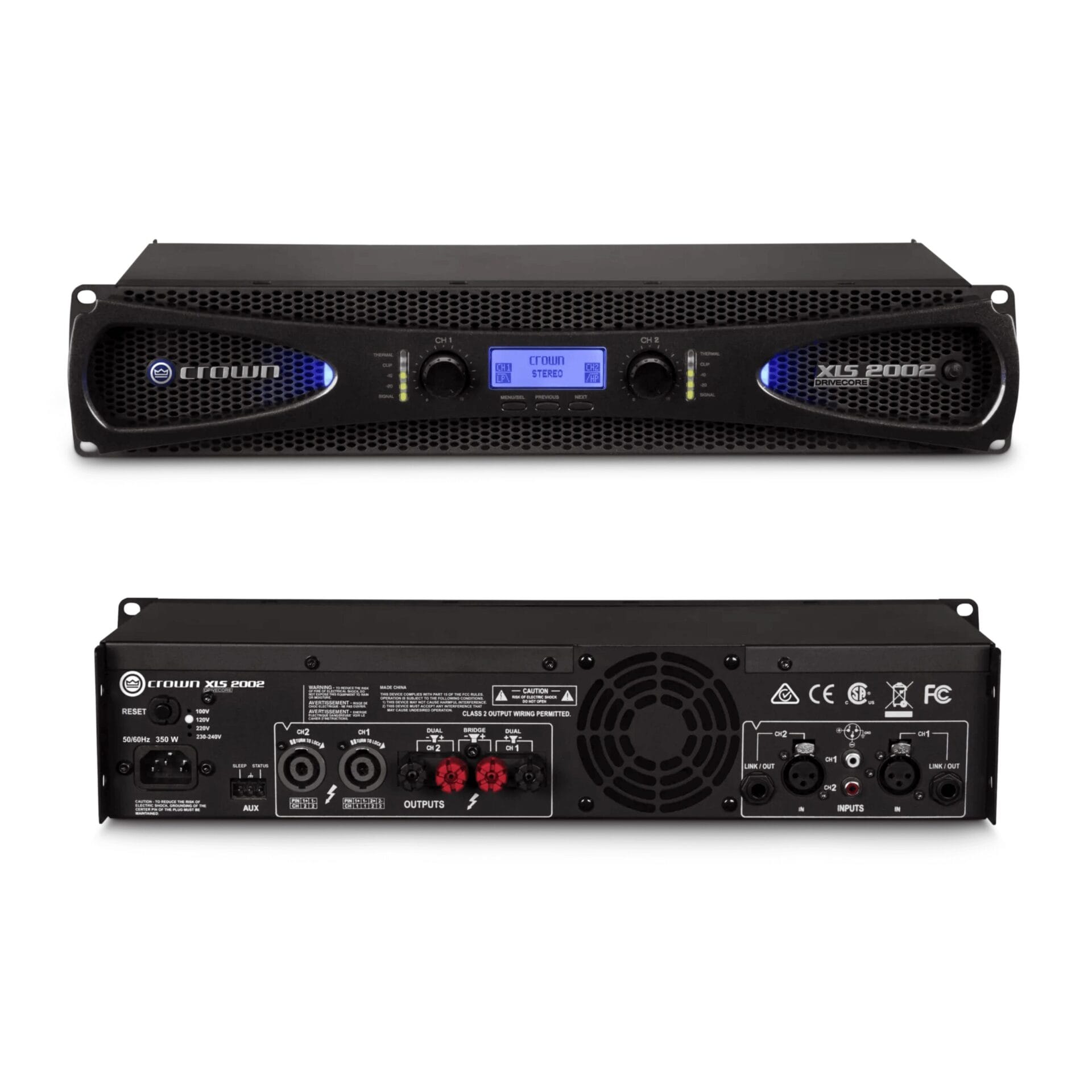

Crown XLS 2002 Power Amplifier

The Crown XLS 2002 Power Amplifier is part of the redesigned DriveCore series, built to deliver power, efficiency, and control in a lightweight package. Weighing under 11 pounds, this Class D amplifier uses Crown’s patented DriveCore technology to provide clean, undistorted sound with plenty of headroom.

Equipped with expanded DSP, the Crown XLS 2002 Power Amplifier offers highpass, lowpass, and bandpass filters on each channel for precise crossover tuning, speaker matching, and system EQ. It supports 2-, 4-, and 8-ohm loads, with the option to bridge for 4-ohm or 8-ohm mono operation. A large front-panel LCD makes setup and monitoring simple, while security and sleep mode options add flexibility for both portable and installed applications.

Crown XLS 2002 Power Amplifier Connectivity is equally versatile, with XLR, 1/4″, and RCA inputs, plus integrated PureBand crossover control and Peakx limiters to maximize performance while protecting your speakers.

Key Features

• Class D amplifier with Crown DriveCore technology

• 525W per channel at 4Ω (up to 2100W bridged at 4Ω)

• DSP with highpass, lowpass, and bandpass filters

• Integrated PureBand crossover system for precision control

• Peakx limiters for maximum output and speaker protection

• Selectable input sensitivity (0.775 Vrms or 1.4 Vrms)

• Lightweight design at under 11 lbs.

• Large LCD for easy monitoring and setup

• Security lockout for menu settings

• Sleep mode with programmable timeout

• System reset to restore factory defaults

• Remote power trigger for integration

• XLR, 1/4″, and RCA inputs for flexible connectivity

• Efficient forced-air cooling to prevent overheating
