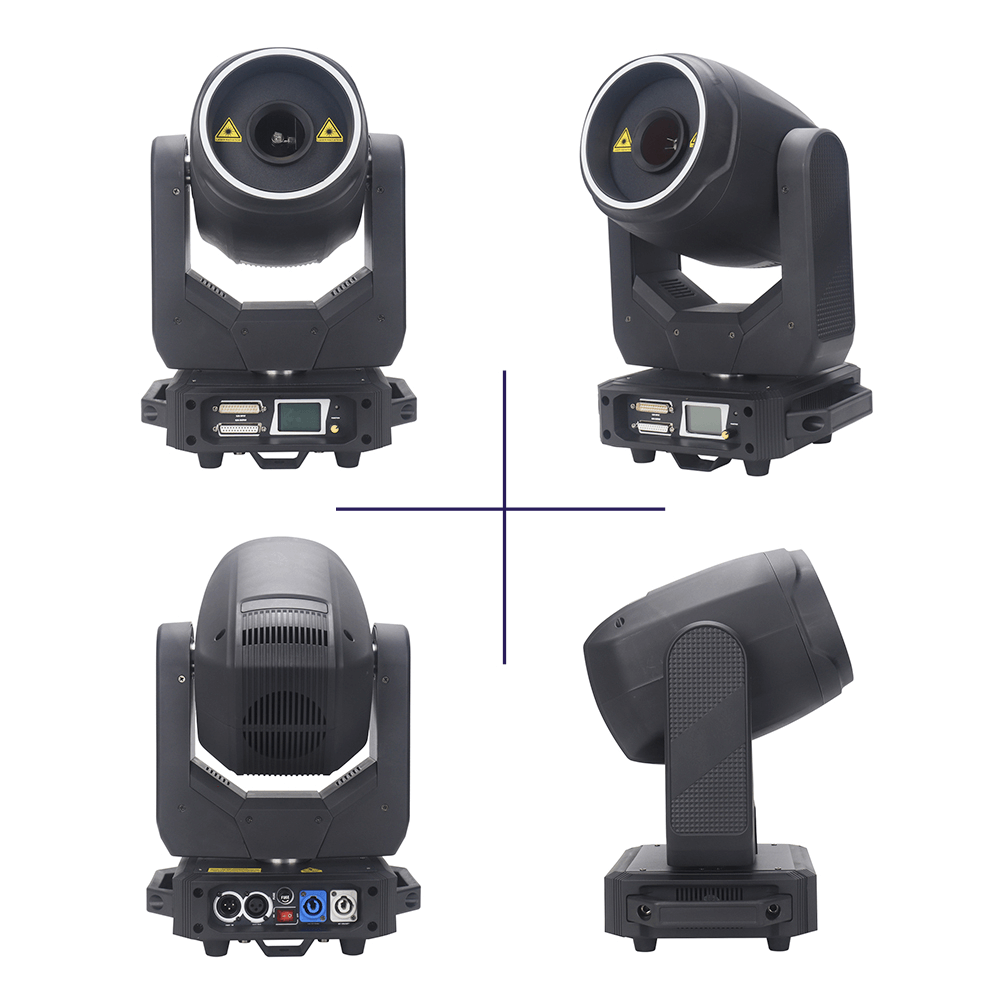

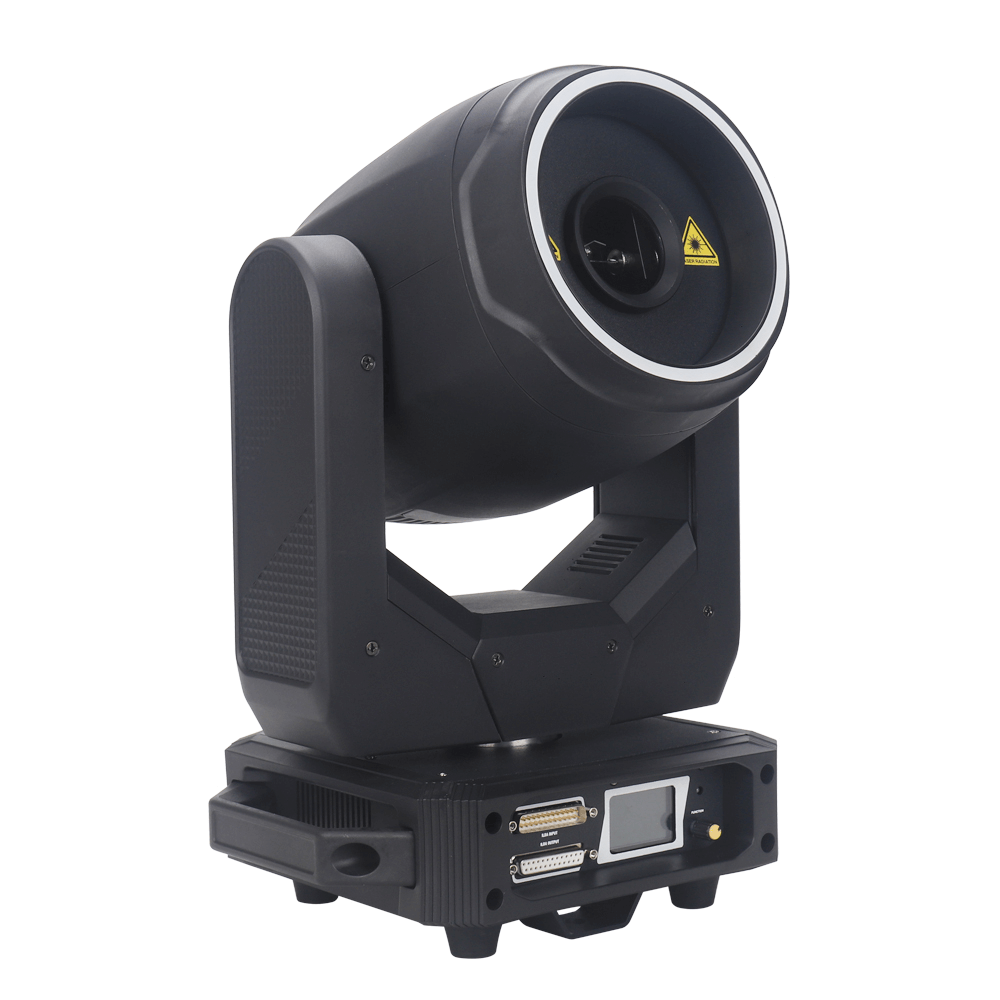

TOP PRO 3D 10W Animation Moving Head Laser Light for Professional Lighting Effects
The TOP PRO 3D 10W Animation Moving Head Laser Light uses advanced RGB laser technology to deliver rich, saturated colors and powerful beam output. Its high-brightness laser source produces intense, far-reaching beams that fill venues with stunning visual effects, creating an immersive experience from every viewing angle.
The 10W Laser Light is built for professional performance, delivering dynamic visual effects that elevate any event or entertainment space. It adds powerful impact and atmosphere across a wide range of applications, including:
• Nightclubs and entertainment venues • Concerts and music festivals • Wedding receptions and special events • Corporate functions and product launches • Theater productions and stage shows

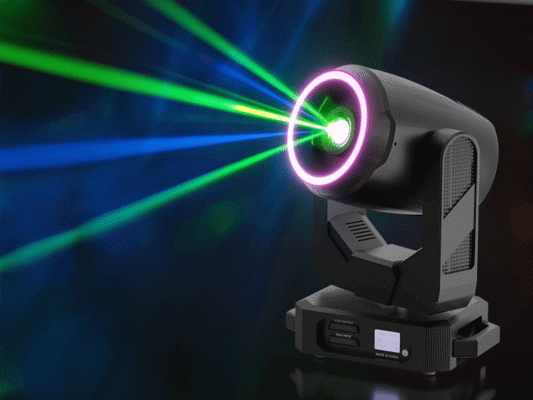

TOP PRO 3D 10W Animation Moving Head Laser Light features high-output diode technology that delivers strong, consistent beam performance. Its full RGB color system and 10W combined output create vivid aerial effects and crisp pattern projections that stand out even in bright or demanding environments.
The high-frequency scanning system delivers a smooth, accurate projection of complex laser patterns with impressive precision and clarity. It produces sharp, well-defined movements with no blurring or distortion, giving you professional-grade visual effects for any show.
Modulation Mode: TTL
Utilizes TTL modulation for precise digital control of laser diodes, enabling rapid on/off switching that produces sharper patterns, smoother animations, and more vibrant colors.

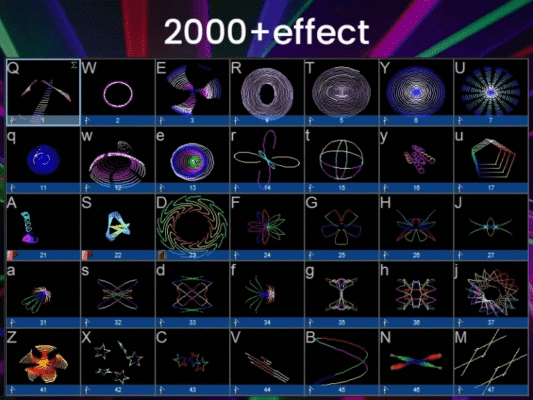

Extensive Pre-Programmed Effects
With over 2000 built-in laser effects, TOP PRO 3D 10W Animation Moving Head Laser Light delivers impressive displays without requiring additional programming.

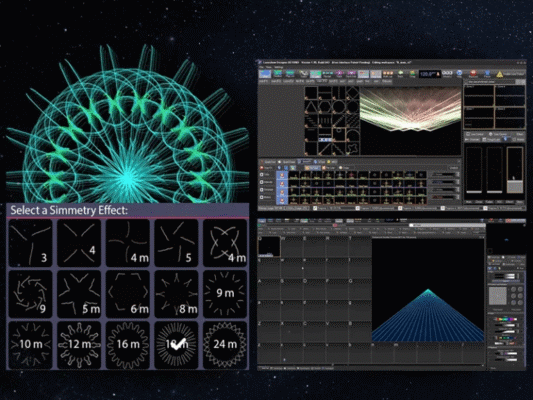

Advanced ILDA Interface Compatibility
Equipped with an ILDA DB25 interface, it supports professional laser software control systems, including Pangolin and Beyond, enabling advanced pattern creation and animation production.

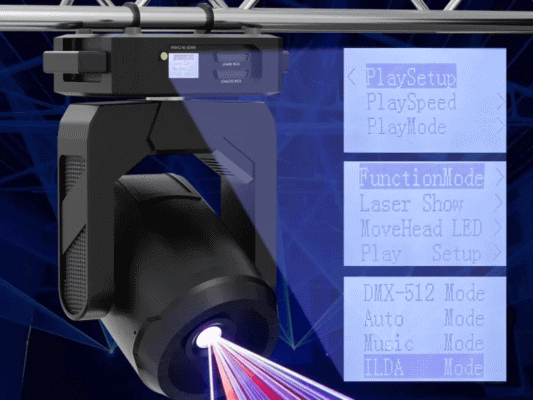

User-Friendly Operation Interface
The intuitive LCD screen offers clear display options, enabling easy navigation through settings and allowing for quick adjustments during live performances.
SPECIFICATION
Product Model Options
10W RGB
Power Supply
AC100-240V, 50/60HZ
Rating Power
120W
Total Laser Power
RGB 10000mw
Laser Diode
Diode Laser/Diode Pumped Solid State
Scan System
20Kpps high-speed scanning galvanometer
Control Mode
Sound Active/Auto-Play/DMX512/ILDA
DMX Channels
32 (Common mode), 49 (Professional mode)
Net Weight
7.45 KG
Gross Weight
8.85 KG
Total weight (1PCS/CTN)
9.6 KG
Product Size
28.5×21.5×44 cm
Inner box size
47×36.5×35.5 cm
Outside Box Size (1PCS/CTN)
49×38.5×38cm
Modulation mode
TTL
Head Moving Angle
540° horizontal rotation
270° vertical rotation
Shell material
Plastic
LCD screen
Chinese/English LCD Screen Operation
Operating temperature
40°
Built-in effects
8 built-in program lists, each with 128 program patterns
