TOP PRO 12 Way Power Distribution Box 63A
Ask An Expert
Our expertly trained Sales Engineers are ready to help!
Have Questions? Ask an Expert!
47
People watching this product now!
-
Secure Payment Method
Payment Methods:
Description

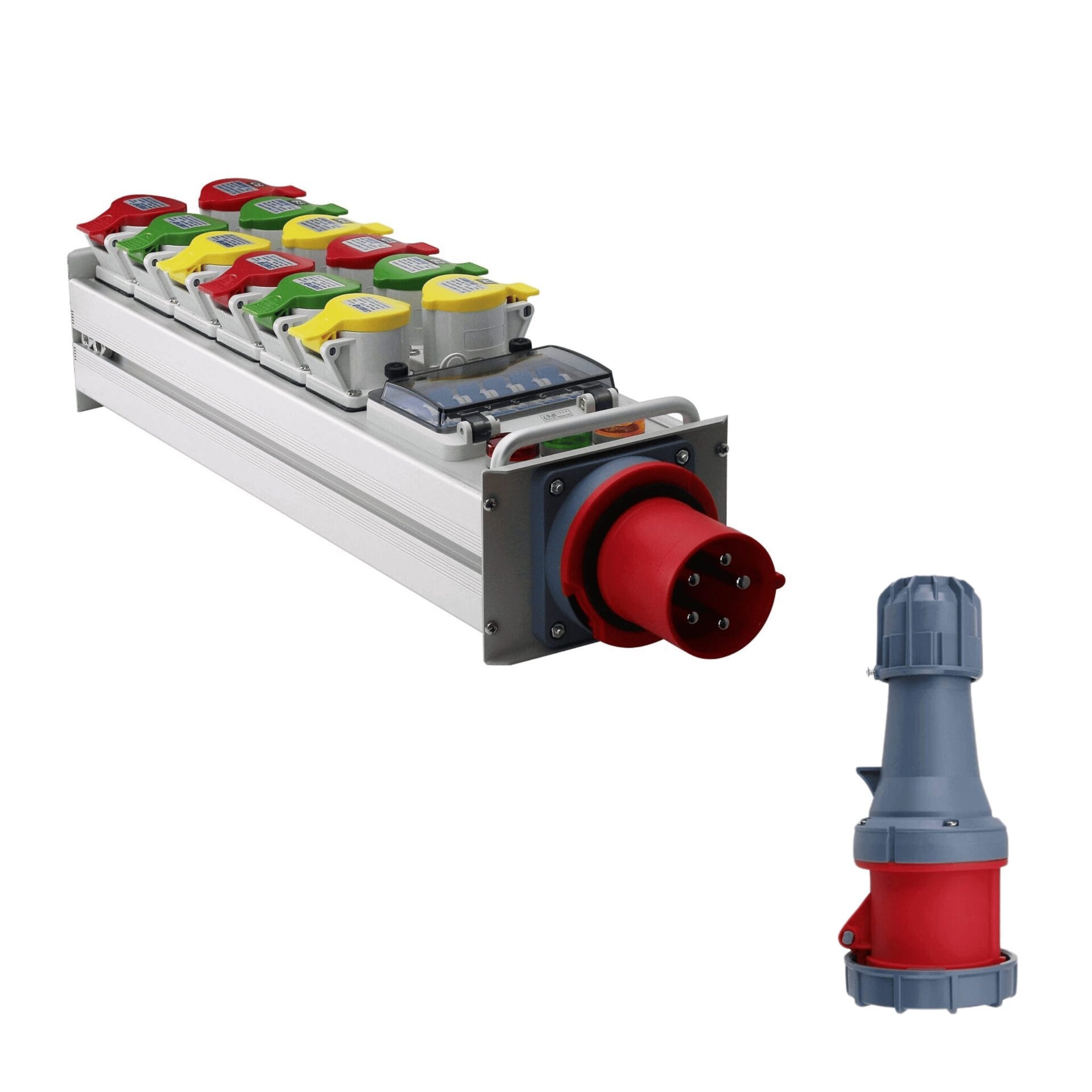

This 12 Way Power Distribution Box is engineered for high-performance rental equipment, large LED screen installations, and stage setups requiring a reliable and stable power supply. Built with industrial-grade components, it ensures safety, efficiency, and durability even under heavy loads. Its compact yet robust design makes it suitable for truss mounting, making it an ideal choice for professional stage, event, and exhibition applications.
Key Features
High Power Capacity

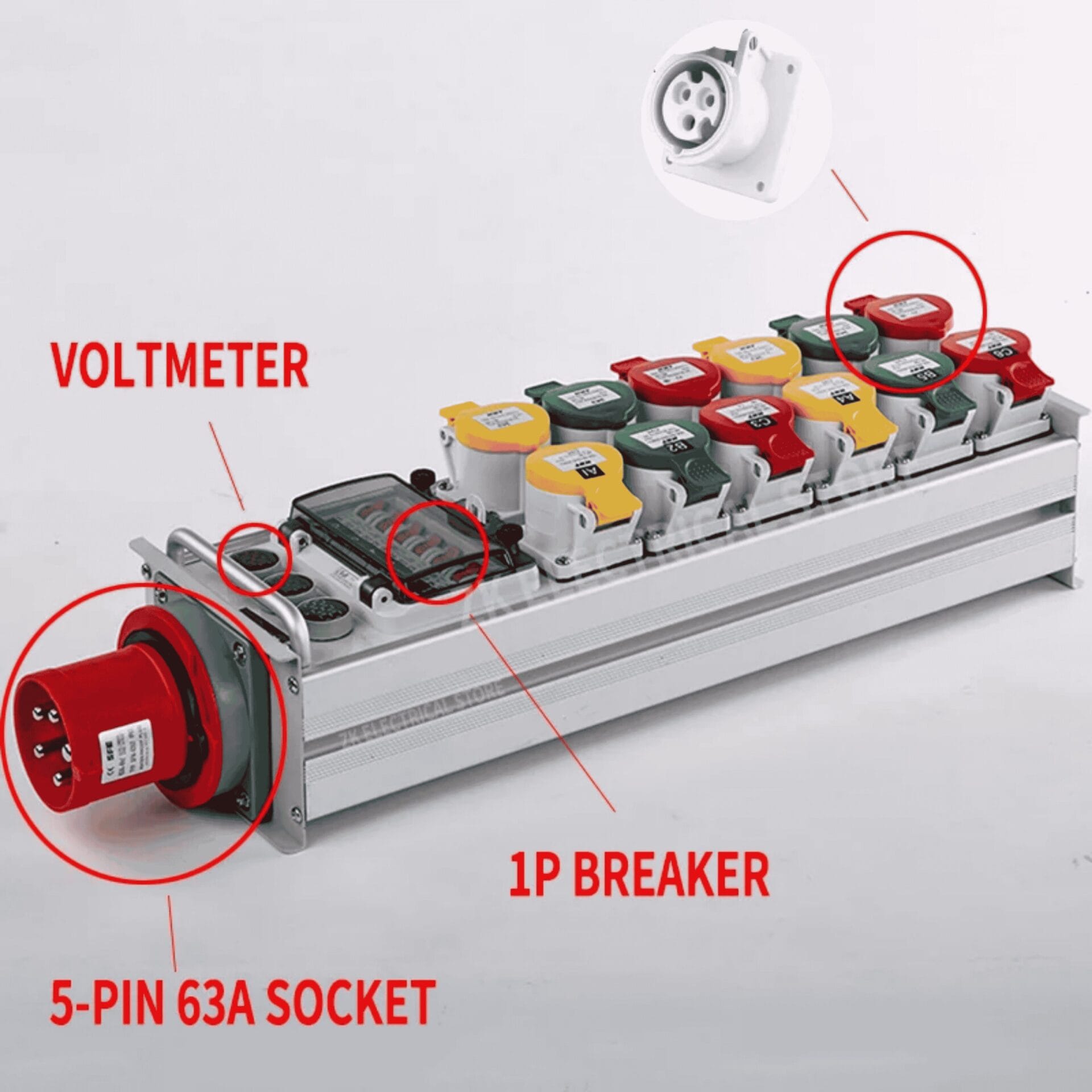

Equipped with a 63A 5-pin 3-phase 5-wire industrial plug with 12mm² bus input.
Delivers a total power output of 35KW, capable of supporting up to 40㎡ large LED screens.
Multiple Outputs for Versatility

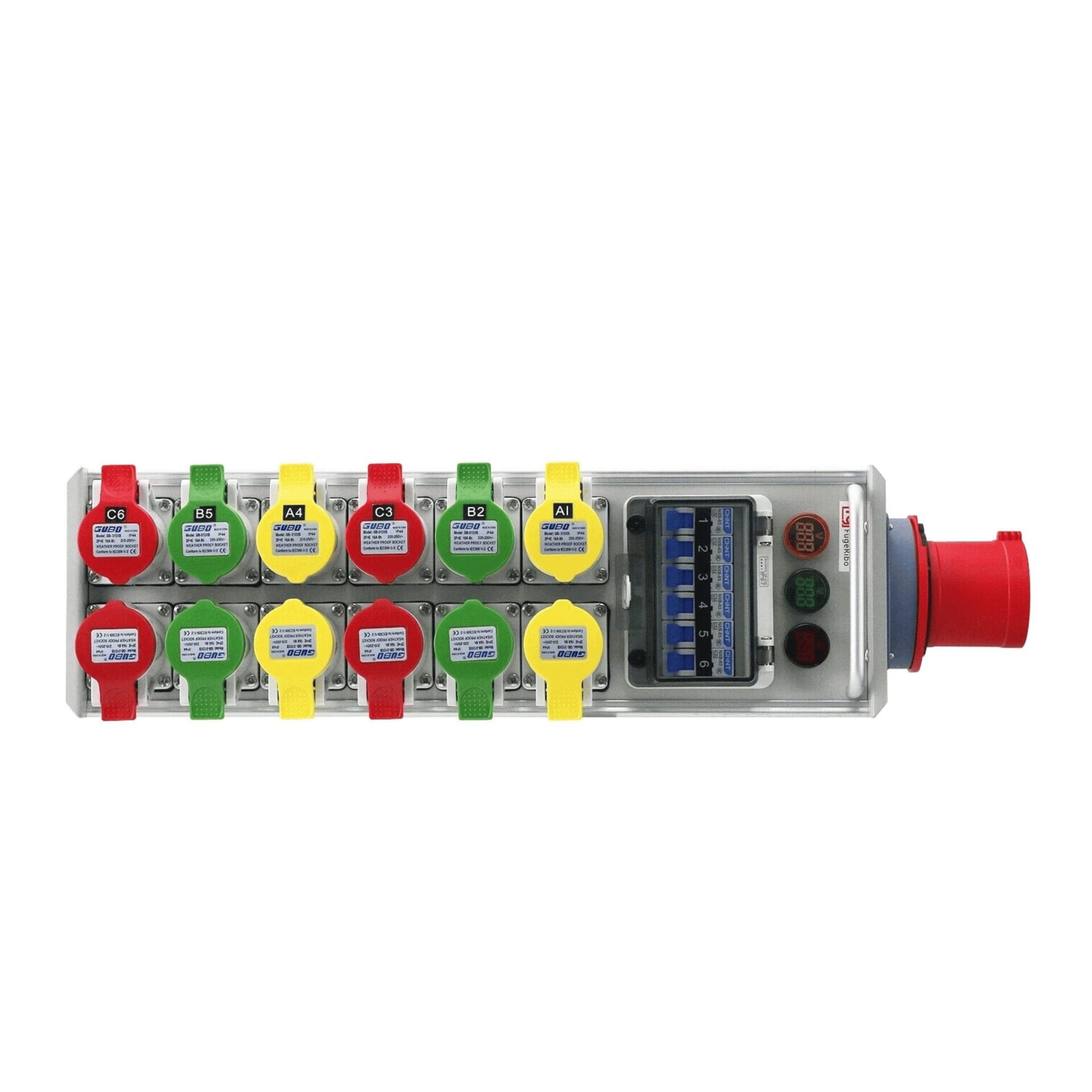

12-way 16A 3-pin industrial plug outputs with 4mm² wiring, providing stable connections for multiple devices.

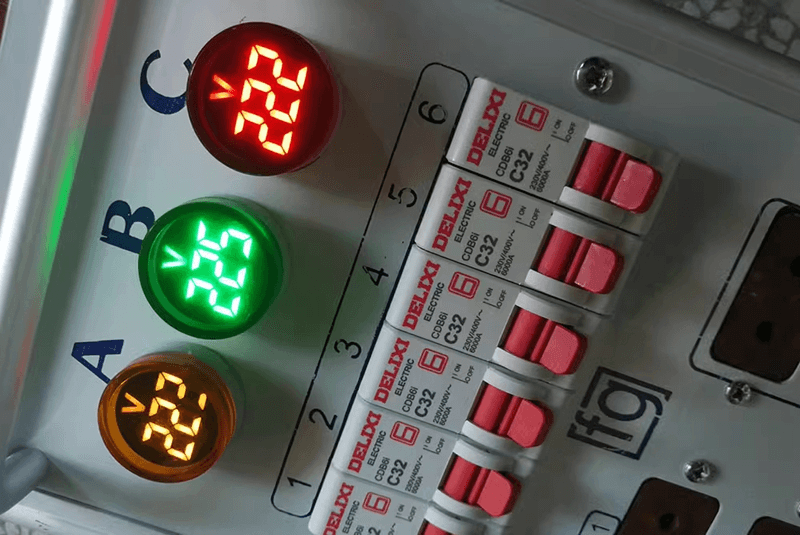

Integrated DELIXI 32A air switch for enhanced circuit protection and safe operation.
Rugged and Durable Construction
Built with a thickened aluminum alloy shell for superior strength, corrosion resistance, and heat dissipation.
Designed for long-term use in demanding environments.
Event & Stage-Friendly Design
Compact structure allows mounting on truss systems, ideal for stage and event setups.
Adjustable screw holes for light hooks make installation fast and secure.
SPECIFICATION
